$39.60

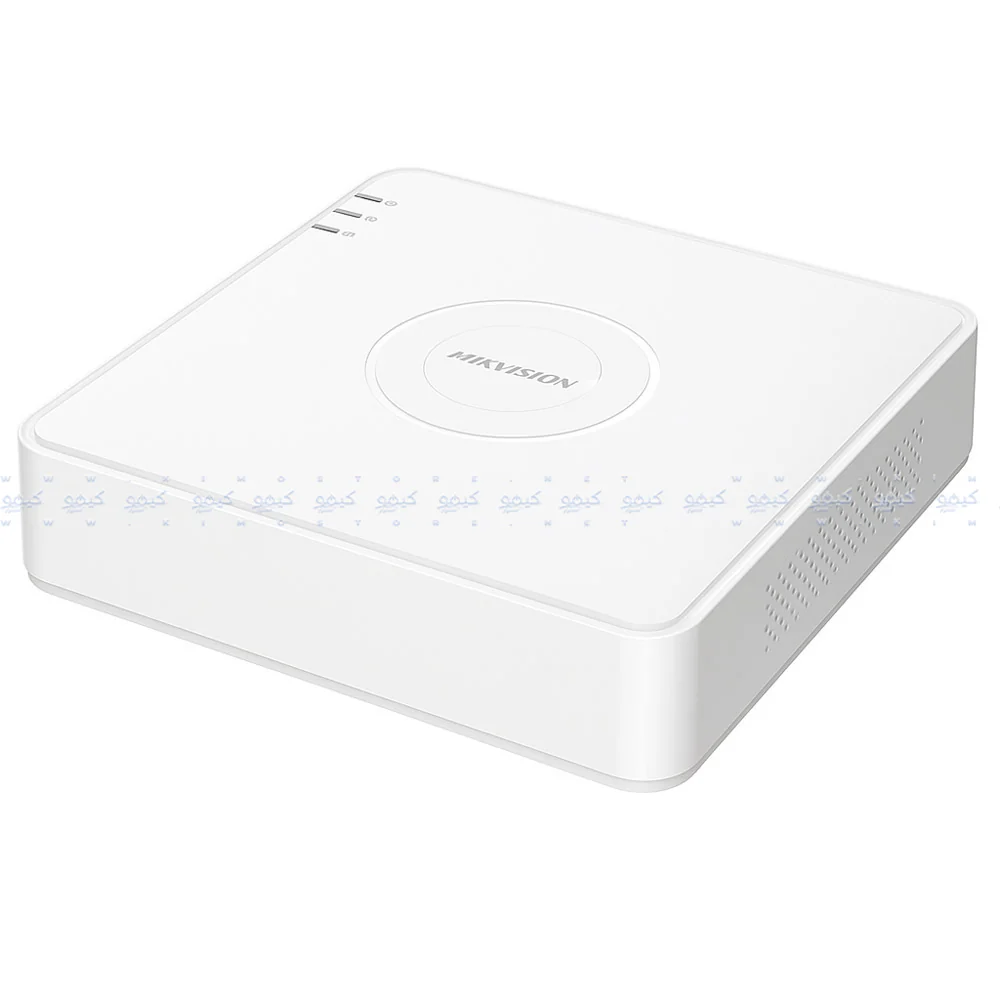

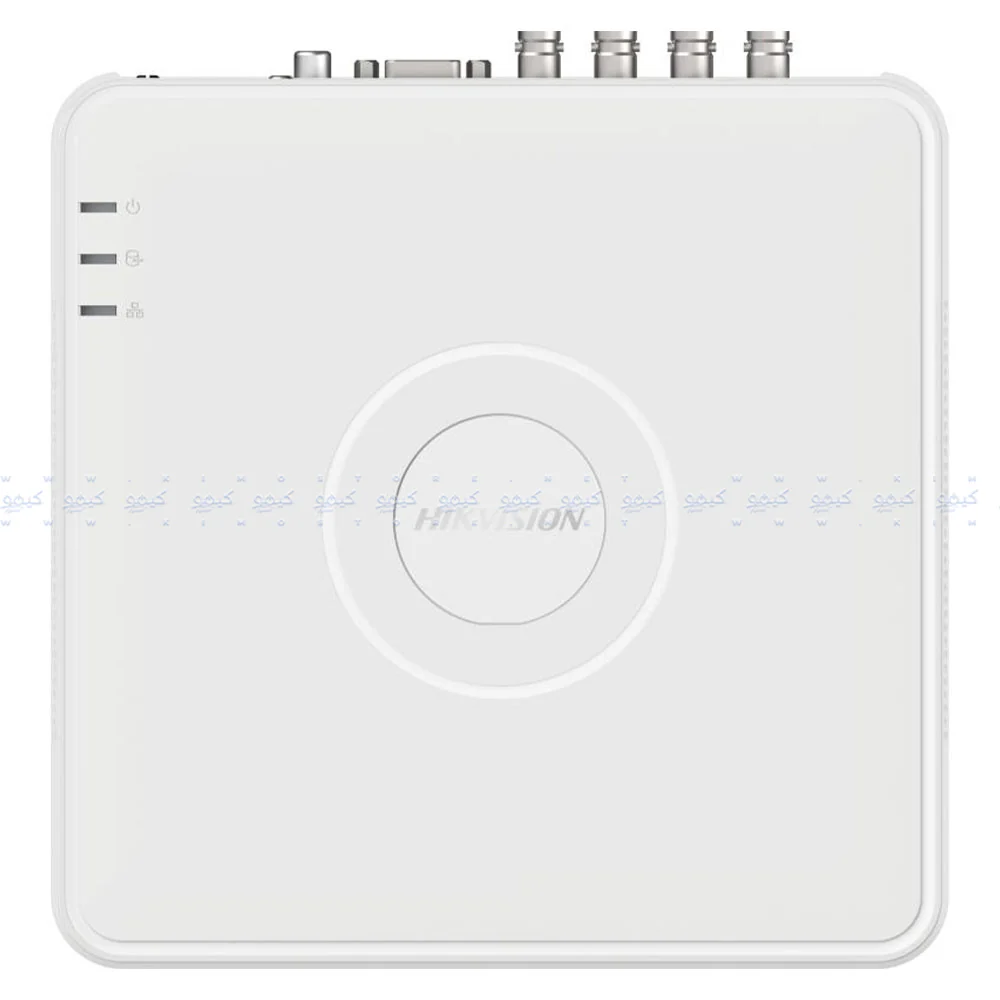

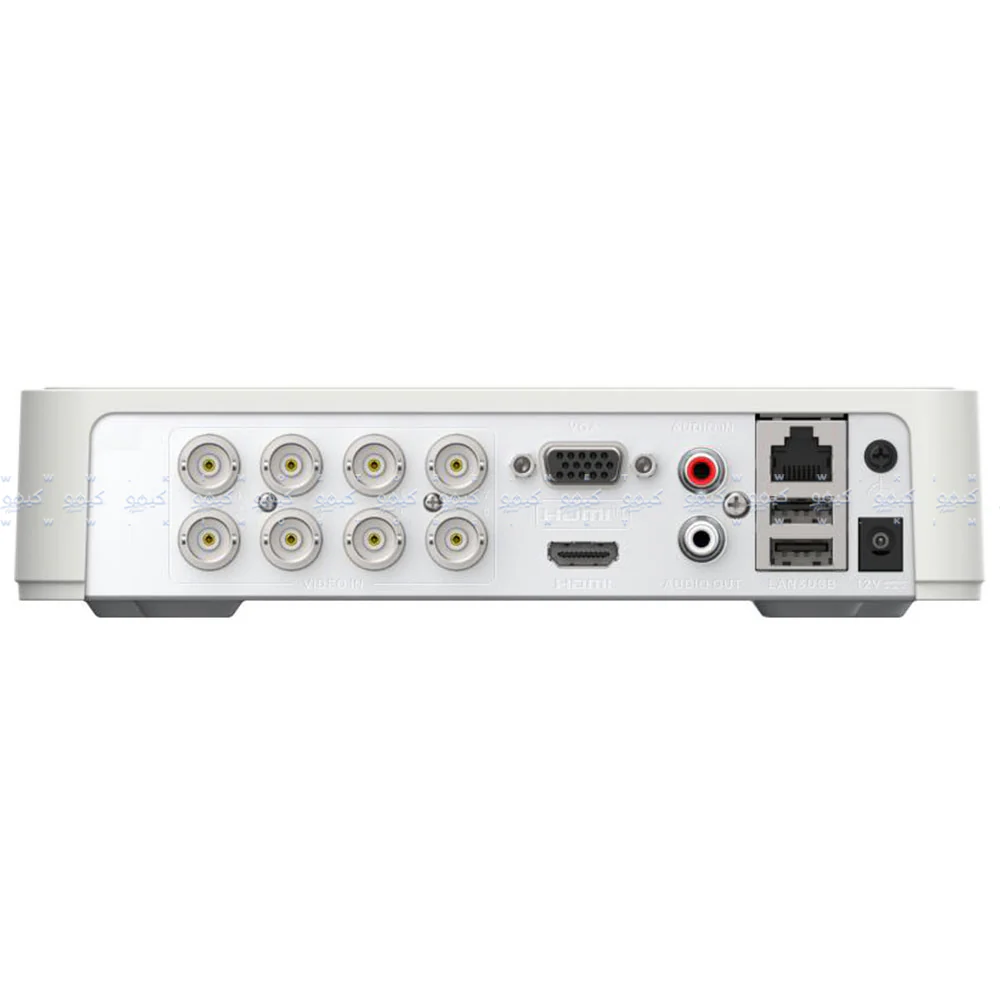

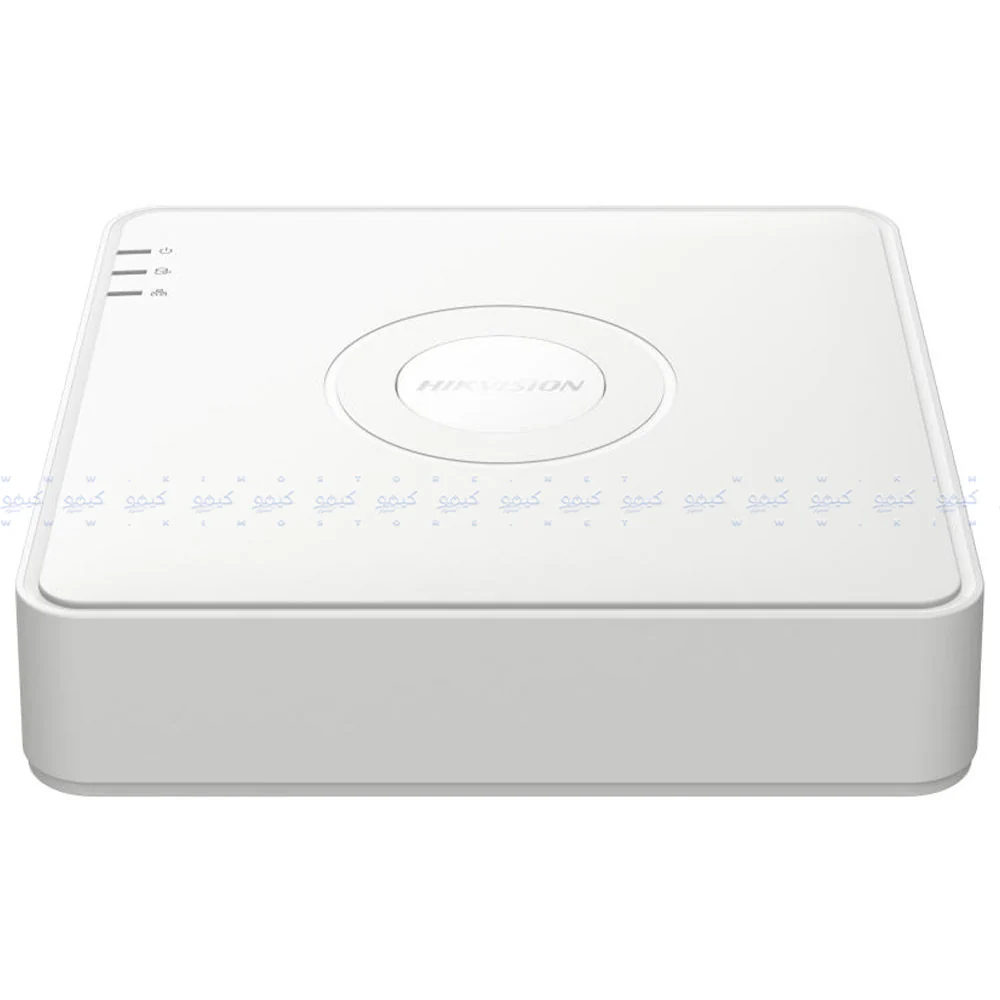

Hikvision DS-7108HGHI-M1/T FHD DVR 8CH—
$39.60
The Story
- Brand: Hikvision
- Model: DS-7108HGHI-M1/T
- Type: DVR
-
Video & Audio
- IP Video Input: 2-ch (up to 10-ch), Up to 5MP Resolution
- Analog Video Input: 8-ch BNC Interface (1.0 VP-P, 75 Ω), Supporting Coaxitron Connection
- Video Live: 1080P
- Video Recording: 720P
- Video Input Types: H.265 Pro+/H.265 Pro/H.265
- VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ) - 8-ch via coaxial cable
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
-
Recording
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Frame Rate: Main Stream: Up To 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps, Sub Stream: Up To 1080p CIF/QVGA@15 fps
- Video Bitrate: 32 Kbps to 4 Mbps
- Stream Type: Video, Video & Audio
- Audio Bitrate: 32 Kbps to 4 Mbps
-
Network
- Network Interface: 1x RJ45 10/100 Mbps self-adaptive Ethernet interface
- Total Bandwidth: 72 Mbps
- Remote Connection: 64
-
Interface
- HDD Type: 1x SATA
- Capacity: Up to 4TB Capacity for Each Disk
- USB: Rear Panel: 2× USB 2.0
-
General
- Operating Temperature: -10 °C to 55 °C (14 °F to +131 °F)
- Operating Humidity: 10% to 90%
- Power Supply: 12 VDC, 1.5 A
- Power Consumption: ≤ 10 W (Without HDD)
-
Dimensions (W × D × H): 200 × 200 × 48mm
- Warranty: 1 Year With Warranty Of The Authorized Agent
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- Brand: Hikvision
- Model: DS-7108HGHI-M1/T
- Type: DVR
-
Video & Audio
- IP Video Input: 2-ch (up to 10-ch), Up to 5MP Resolution
- Analog Video Input: 8-ch BNC Interface (1.0 VP-P, 75 Ω), Supporting Coaxitron Connection
- Video Live: 1080P
- Video Recording: 720P
- Video Input Types: H.265 Pro+/H.265 Pro/H.265
- VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ) - 8-ch via coaxial cable
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
-
Recording
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Frame Rate: Main Stream: Up To 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps, Sub Stream: Up To 1080p CIF/QVGA@15 fps
- Video Bitrate: 32 Kbps to 4 Mbps
- Stream Type: Video, Video & Audio
- Audio Bitrate: 32 Kbps to 4 Mbps
-
Network
- Network Interface: 1x RJ45 10/100 Mbps self-adaptive Ethernet interface
- Total Bandwidth: 72 Mbps
- Remote Connection: 64
-
Interface
- HDD Type: 1x SATA
- Capacity: Up to 4TB Capacity for Each Disk
- USB: Rear Panel: 2× USB 2.0
-
General
- Operating Temperature: -10 °C to 55 °C (14 °F to +131 °F)
- Operating Humidity: 10% to 90%
- Power Supply: 12 VDC, 1.5 A
- Power Consumption: ≤ 10 W (Without HDD)
-
Dimensions (W × D × H): 200 × 200 × 48mm
- Warranty: 1 Year With Warranty Of The Authorized Agent
