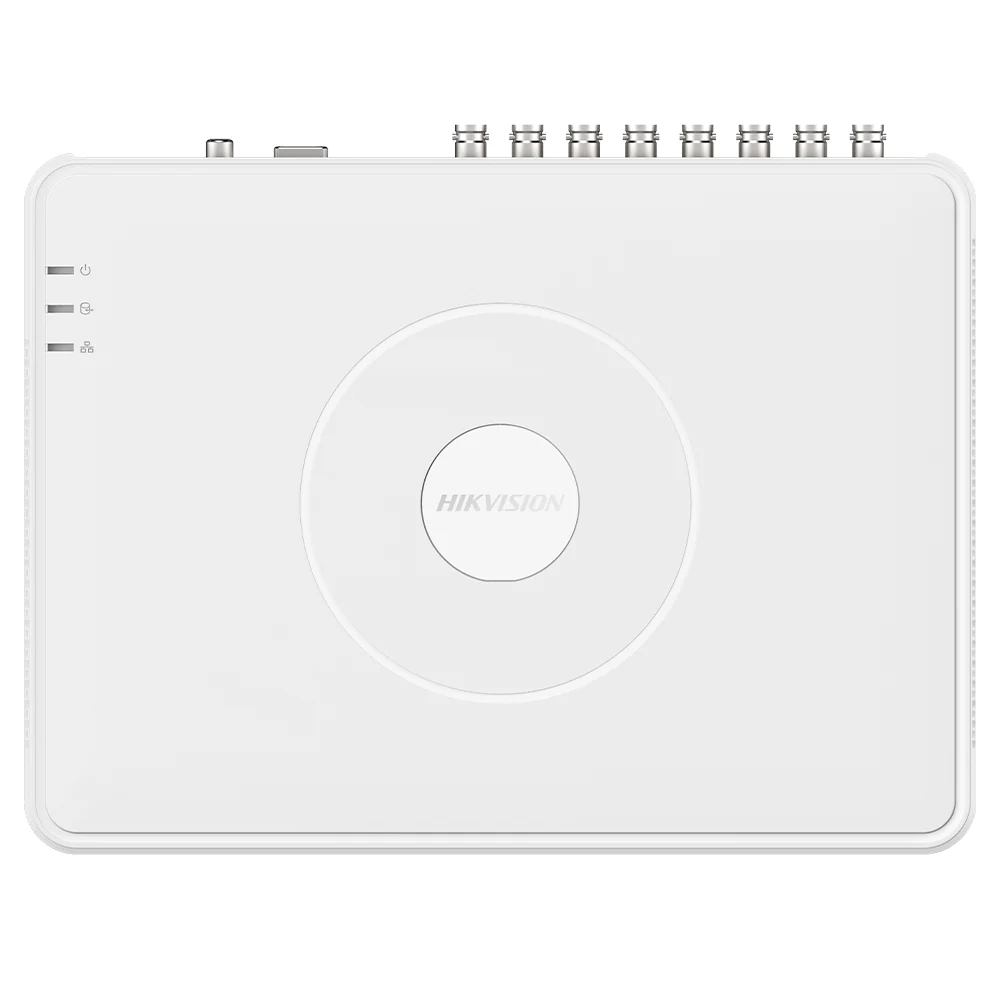

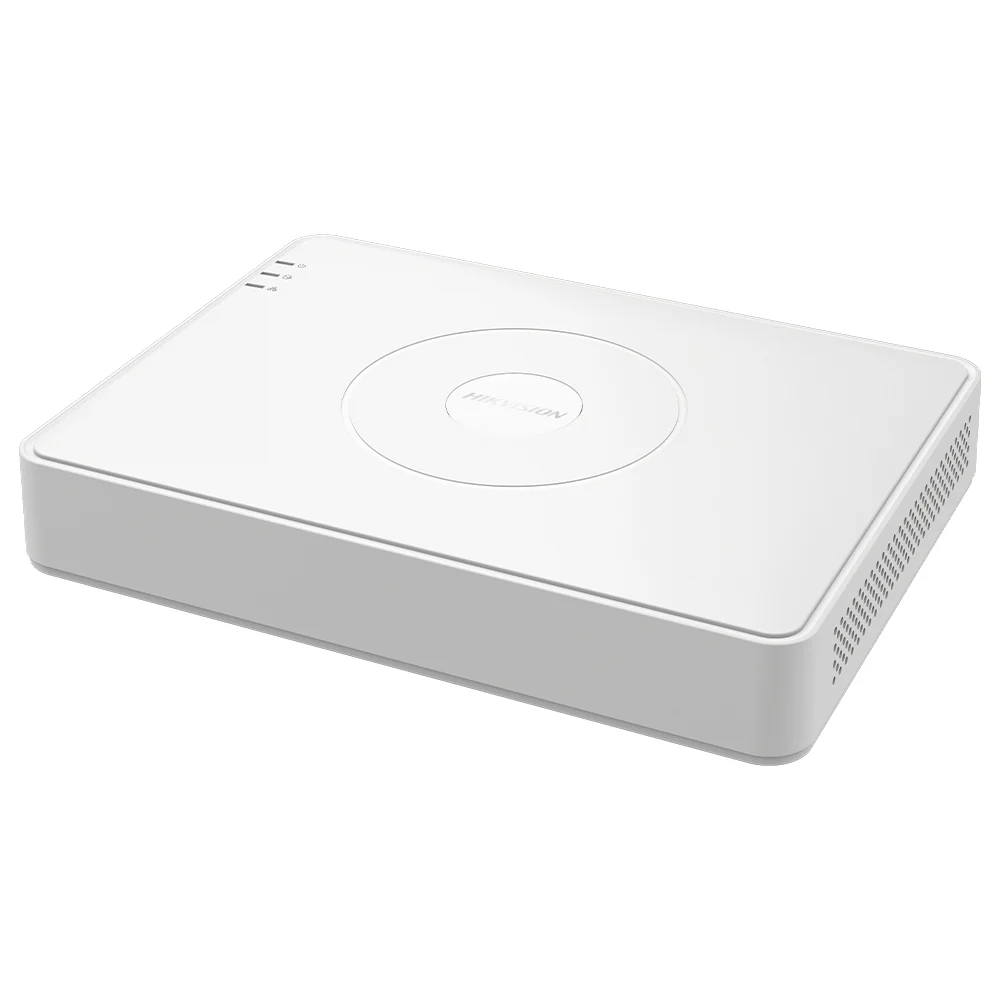

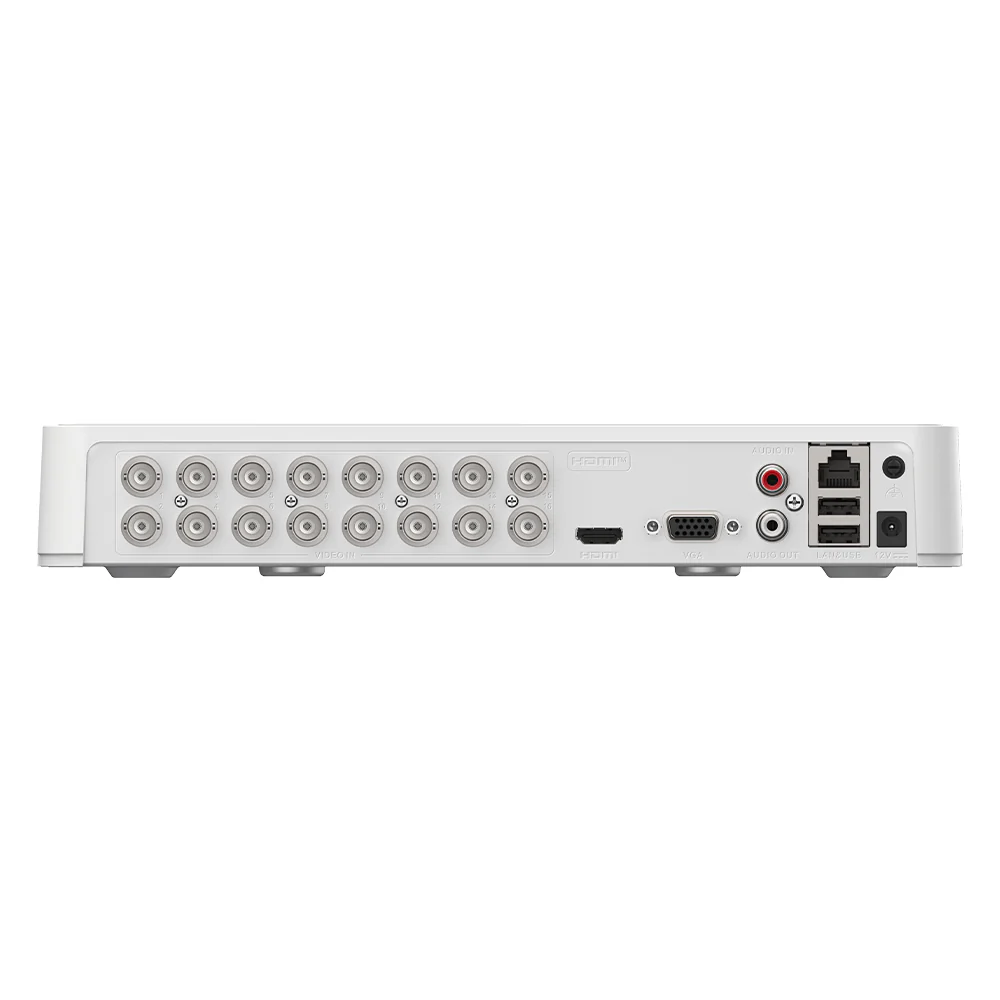

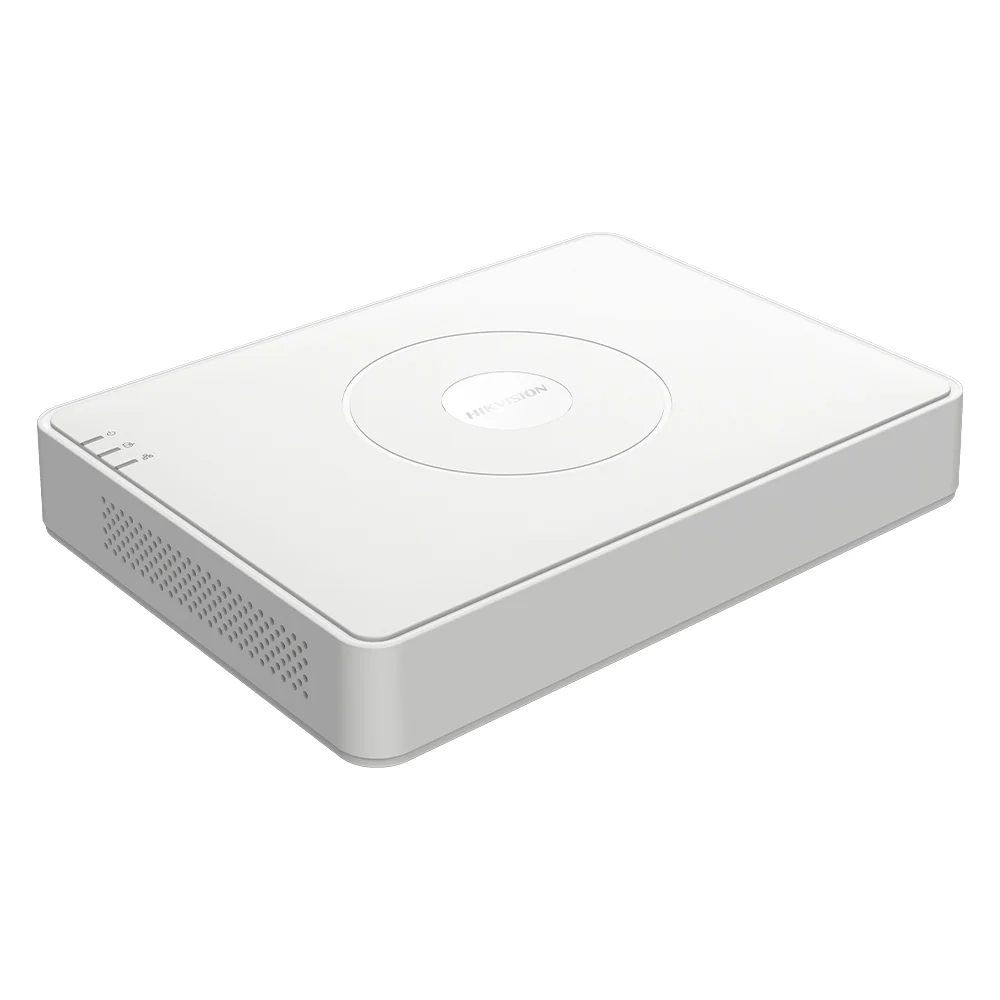

Hikvision IDS-7116HQHI-M1/T FHD DVR 16CH

• IP Video Input: 2-ch (up to 18-ch) Enhanced IP Mode On: 8-Ch (Up to 24-ch), Each Up to 4 Mbps Up to 6 MP Resolution Support H.265+/H.265/H.264+/H.264 IP Cameras
• Analog Video Input: 16-ch BNC Interface (1.0 Vp-p, 75 Ω), Supporting Coaxitron Connection
• Video Live: 4MP

• Video Recording: 1080P

• Video Input Types: HDTVI/AHD/CVI/CVBS/IP
• VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Audio Input: 1-ch (up to 4-ch is Optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch Via Coaxial Cable
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Frame Rate: Main Stream: When 1080p Lite Mode Not Enabled: Up To 3K Stream Access: 3K Lite@12fps;4 MP Lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps, When 1080p Lite Mode Enabled: Up To 3K Lite/5 MP Lite@12fps;4 MP Lite@15fps;3 MP/2K@10fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• Video Bitrate: 32 Kbps to 6 Mbps
• Stream Type: Video, Video & Audio
• Audio Bitrate: 64 Kbps

• Network Interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet Interface
• Total Bandwidth: 128 Mbps
• Remote Connection: 128

• HDD Type: 1x SATA
• Capacity: Up to 10TB Capacity For Each Disk
• USB: Rear Panel: 2× USB 2.0

• Operating Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
• Operating Humidity: 10% to 90%
• Power Supply: 12 VDC, 2 A
• Power Consumption: ≤ 24 W (Without HDD)
• Dimensions (W × D × H): 285 x 210 x 48mm


Warranty: 1 Year With Warranty Of The Authorized Agent
