The Story
- Brand: Hikvision
- Model: DS-KIS603-P(C)
- Type: Video Intercom
-
IP Indoor Monitor
- Operation System: Embedded Linux
- Memory: 128MB RAM
- Flash: 32 MB
- Display: 7-inch Colorful TFT Screen
- Resolution: 1024 × 600
- Audio Input: Built-in Omnidirectional Microphone
- Audio Output: Built-in Speaker
- Audio Quality: Noise Suppression and Echo Cancellation
- RS-485: 1

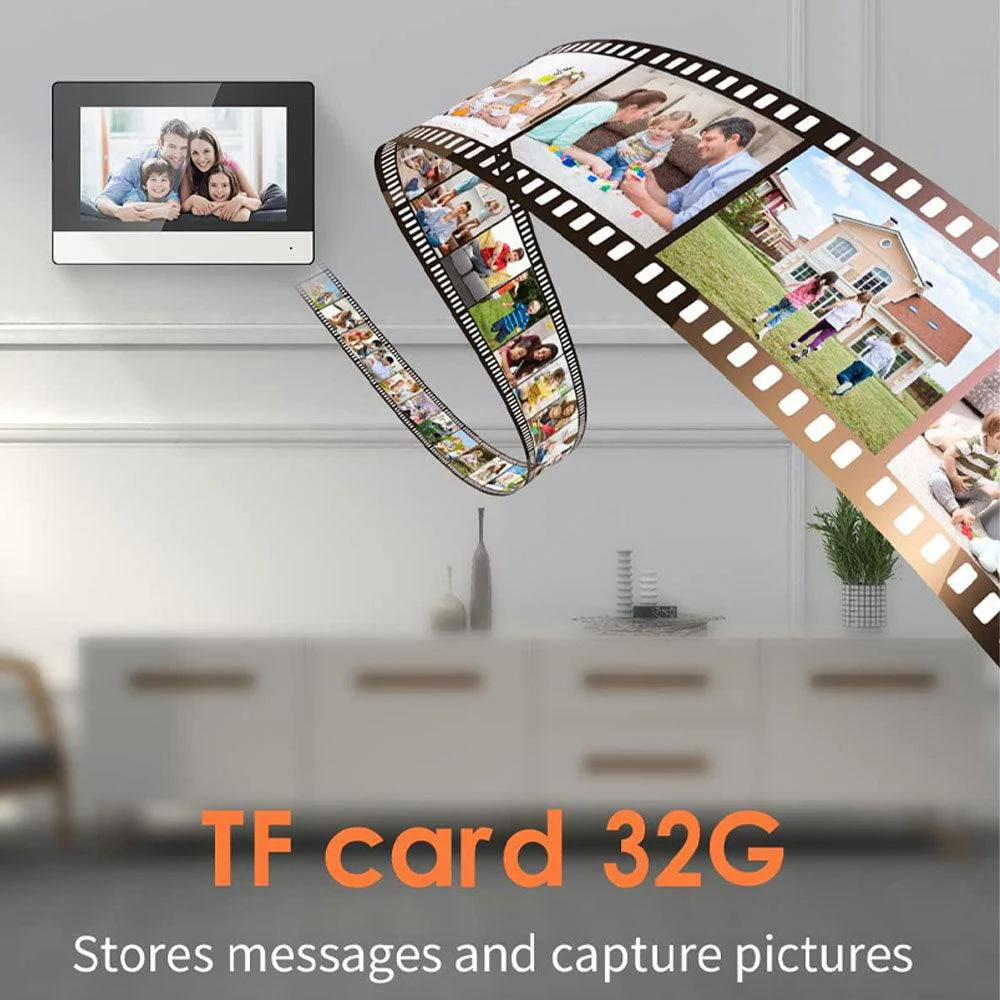

- TF Card: Max to 32 G, SD 2.0 or Lower Version
- Alarm Input: 8-ch Alarm Inputs
- Relay Output: 2
- Network Interface: 10/100 Mbps Self-Adaptive
- Wireless Network: Wi-Fi 802.11 b/g/n
- Power Supply: IEEE802.3af, Standard PoE 12 VDC
- Power Consumption: ≤ 6W
- Dimensions: 200 × 140 × 15.1mm
-
IP Door Station
- Operation System: Embedded Linux Operation System
- Memory: 256MB RAM
- Flash: 32 MB

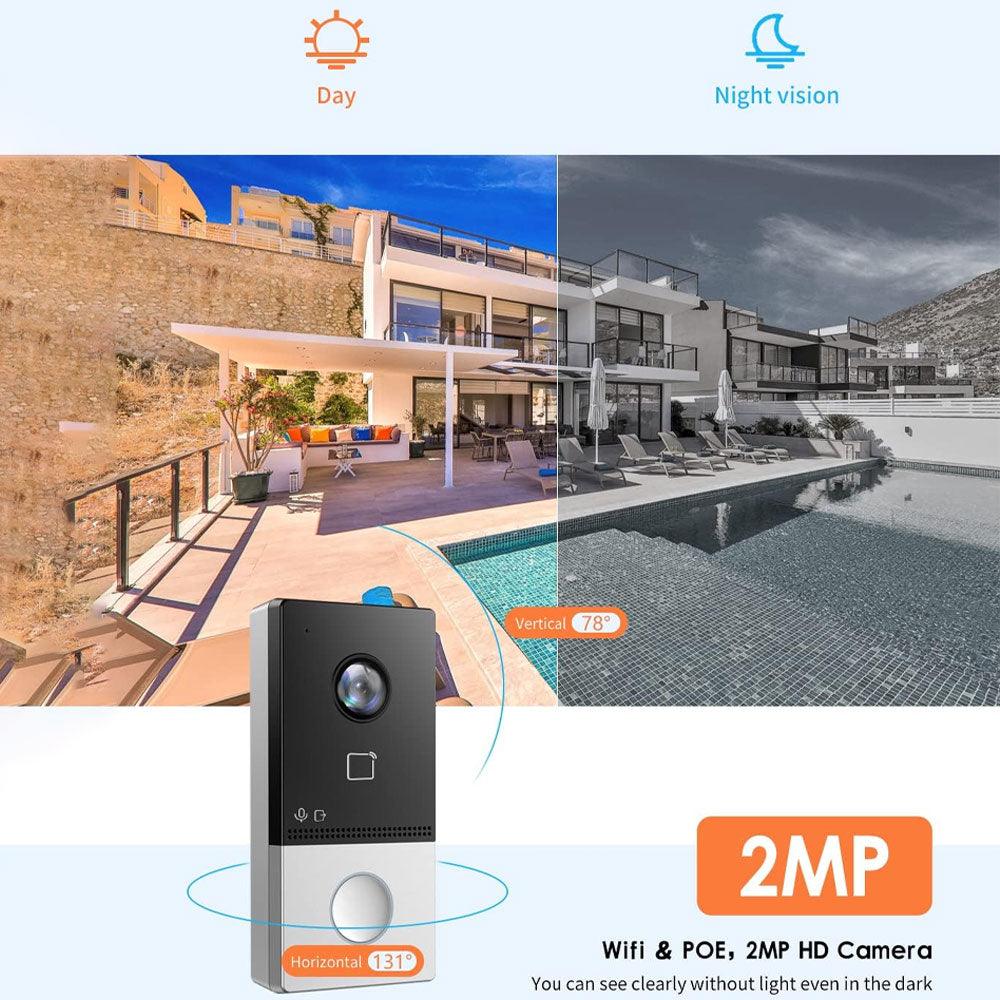

- Lens: 2MP HD Camera
- Resolution: Main Stream: 1080p@25fps, 720p@25fps Sub stream: 720@25fps,480@25fps
- Field of View: Horizontal: 131° Vertical: 78°
- Night Vision: Low Illumination IR Supplement Mode: 3m

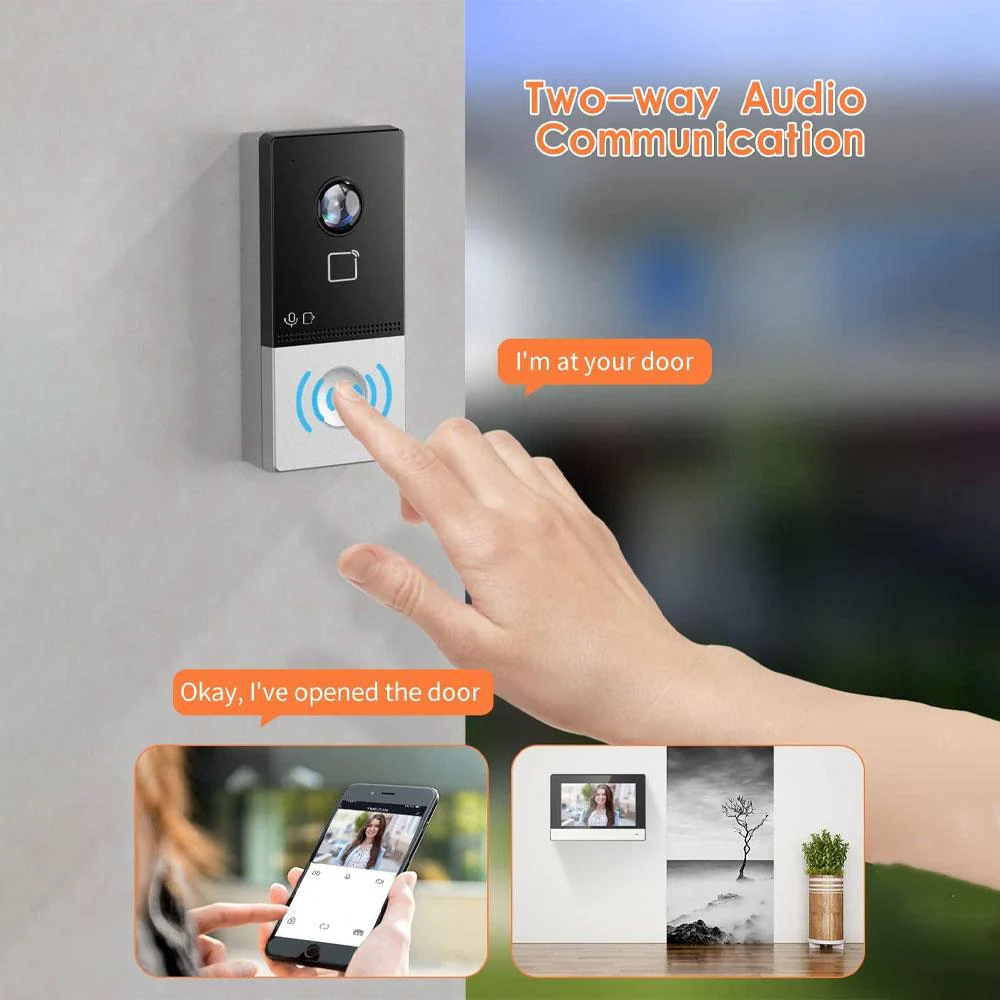

- Audio Input: Built-in Omnidirectional Microphone
-
Audio Output: 1 Built-in Loudspeaker
- Audio Quality: Noise Suppression and Echo Cancellation
- RS-485: 1
- Alarm Input: 4
- DNR Mode: Yes
- Noise Reduction: Yes
- Motion Detection: Yes

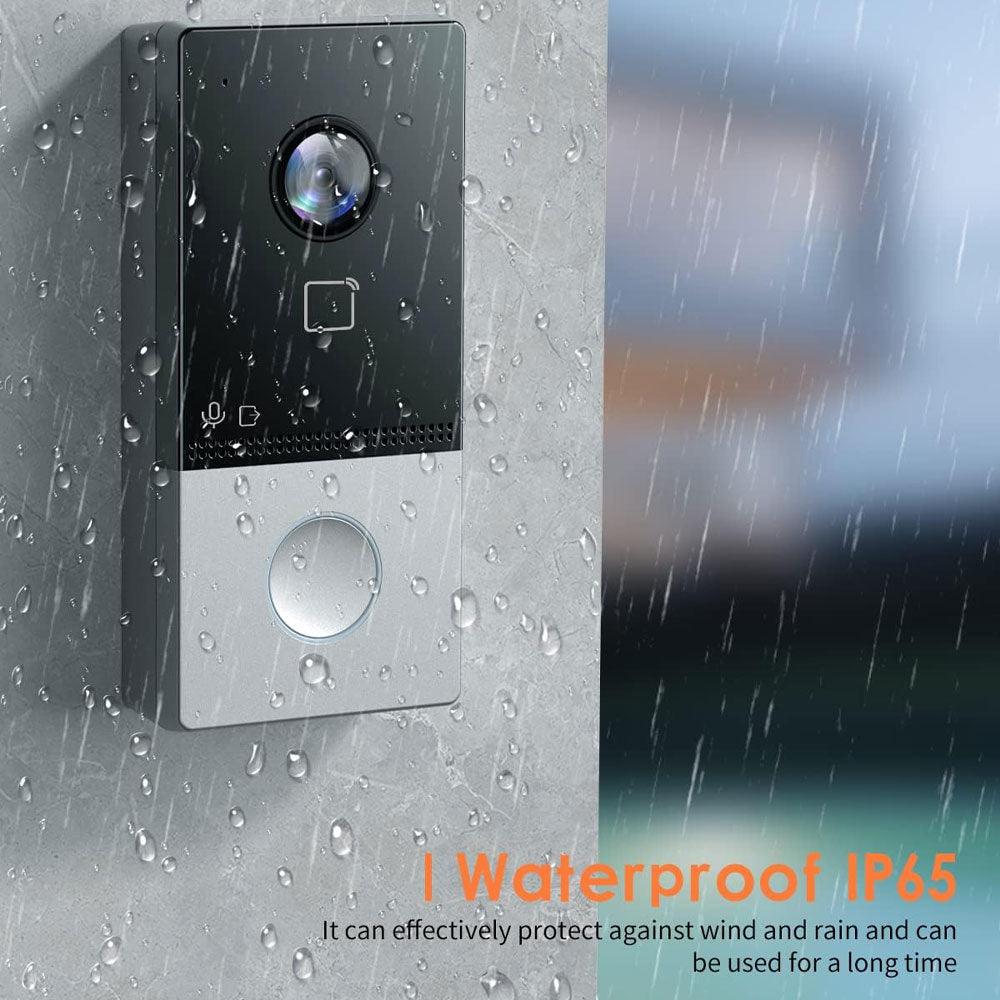

- Protection Level: IP65
- Network Interface: 10/100 Mbps Ethernet
-
Power Supply: IEEE802.3af, Standard PoE 12 VDC
- Power Consumption: <10W
- Dimensions: 138 × 65 × 27mm
- Warranty: 1 Year with Warranty of the Authorized Agent

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- Brand: Hikvision
- Model: DS-KIS603-P(C)
- Type: Video Intercom
-
IP Indoor Monitor
- Operation System: Embedded Linux
- Memory: 128MB RAM
- Flash: 32 MB
- Display: 7-inch Colorful TFT Screen
- Resolution: 1024 × 600
- Audio Input: Built-in Omnidirectional Microphone
- Audio Output: Built-in Speaker
- Audio Quality: Noise Suppression and Echo Cancellation
- RS-485: 1
- TF Card: Max to 32 G, SD 2.0 or Lower Version
- Alarm Input: 8-ch Alarm Inputs
- Relay Output: 2
- Network Interface: 10/100 Mbps Self-Adaptive
- Wireless Network: Wi-Fi 802.11 b/g/n
- Power Supply: IEEE802.3af, Standard PoE 12 VDC
- Power Consumption: ≤ 6W
- Dimensions: 200 × 140 × 15.1mm
-
IP Door Station
- Operation System: Embedded Linux Operation System
- Memory: 256MB RAM
- Flash: 32 MB
- Lens: 2MP HD Camera
- Resolution: Main Stream: 1080p@25fps, 720p@25fps Sub stream: 720@25fps,480@25fps
- Field of View: Horizontal: 131° Vertical: 78°
- Night Vision: Low Illumination IR Supplement Mode: 3m
- Audio Input: Built-in Omnidirectional Microphone
-
Audio Output: 1 Built-in Loudspeaker
- Audio Quality: Noise Suppression and Echo Cancellation
- RS-485: 1
- Alarm Input: 4
- DNR Mode: Yes
- Noise Reduction: Yes
- Motion Detection: Yes
- Protection Level: IP65
- Network Interface: 10/100 Mbps Ethernet
-
Power Supply: IEEE802.3af, Standard PoE 12 VDC
- Power Consumption: <10W
- Dimensions: 138 × 65 × 27mm
- Warranty: 1 Year with Warranty of the Authorized Agent
