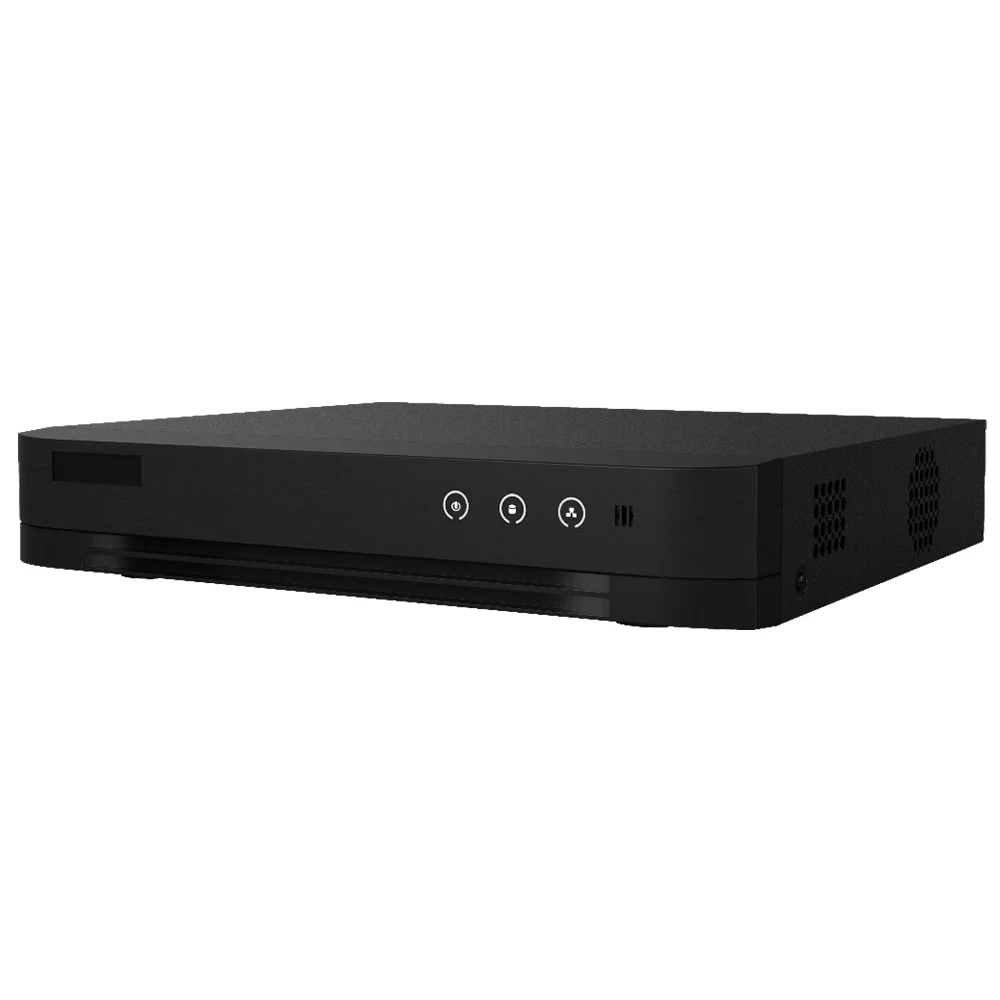

Hikvision IDS-7204HQHI-M1/E FHD DVR 4CH

• IP Video Input: 1-Ch (up to 5-ch) Enhanced IP Mode On: 2-Ch (Up to 6-ch), Each Up to 4 Mbps Up to 6 MP Resolution Support H.265+/H.265/H.264+/H.264 IP Cameras
• Analog Video Input: 4-Ch BNC Interface (1.0 Vp-p, 75 Ω), Supporting Coaxitron Connection
• Video Live: 4MP
• Video Recording: 1080P
• Video Input Types: HDTVI/AHD/CVI/CVBS/IP
• VGA Output: 1-Ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• HDMI Output: 1-Ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via Coaxial Cable

• Audio Output: 1-Ch, RCA (Linear, 1 KΩ)

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Frame Rate: Main Stream: When 1080p Lite mode not enabled: 3K, lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP, enabled: 3K lite/5 MP lite@12fps;4 MP, Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• Video Bitrate: 32 Kbps to 6 Mbps
• Stream Type: Video, Video & Audio
• Audio Bitrate: 64 Kbps

• Network Interface: 1x RJ45 10/100 Mbps self-adaptive Ethernet interface
• Total Bandwidth: 72 Mbps
• Remote Connection: 32

• HDD Type: 1x SATA
• Capacity: Up to 10TB Capacity for Each Disk
• USB: Rear Panel: 2× USB 2.0

• Operating Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
• Operating Humidity: 10% to 90%
• Power Supply: 12 VDC, 1.5 A
• Power Consumption: ≤ 8 W
• Dimensions (W × D × H): 265 × 225 × 48 mm

Warranty: 1 Year With Warranty Of The Authorized Agent
