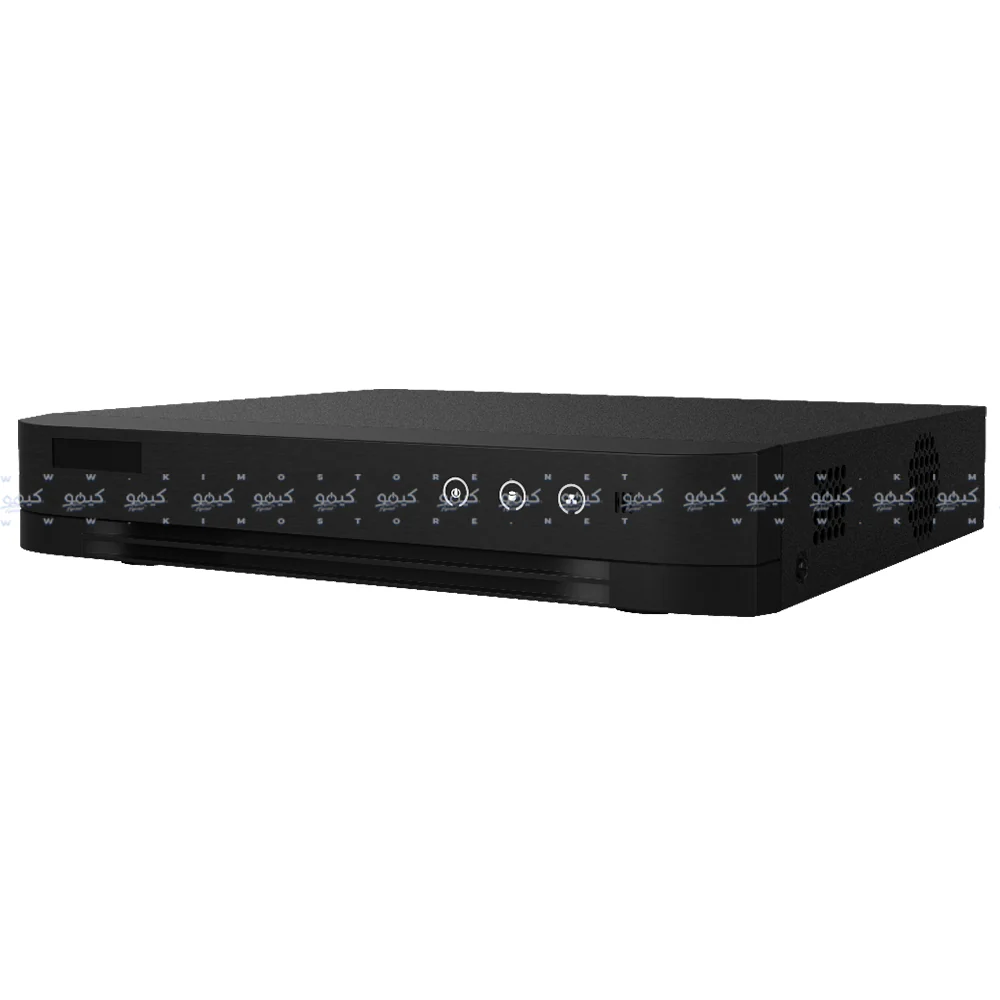

Hikvision IDS-7204HUHI-M1/E 4K DVR 4CH

• IP Video Input: 2-ch (up to 6-ch), each up to 8MP
• Analog Video Input: 4-ch BNC interface (1.0 Vp-p, 75 Ω), Supporting Coaxitron Connection
• Video Live: 8MP (4K)
• Video Recording: 5MP
• Video Input Types: HDTVI/AHD/CVI/CVBS/IP
• VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• HDMI Output: 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch Via Coaxial Cable
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Frame Rate: Main Stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N), Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate: 32 Kbps to 10 Mbps
• Stream Type: Video, Video & Audio
• Audio Bitrate: 64 Kbps

• Network Interface: 1x RJ45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
• Total Bandwidth: 96Mbps
• Remote Connection: 32

• HDD Type: 1x SATA
• Capacity: Up to 10TB Capacity for Each Disk
• USB: 2 × USB 2.0


• Operating Temperature: -10 °C to 55 °C (14 °F to +131 °F)
• Operating Humidity: 10% to 90%
• Power Supply: 12 VDC, 1.5 A
• Power Consumption: ≤ 15 W
• Dimensions (W × D × H): 265 × 225 × 48 mm
• Weight: ≤ 1.16 kg

Warranty: 1 Year With Warranty Of The Authorized Agent
