$35.74

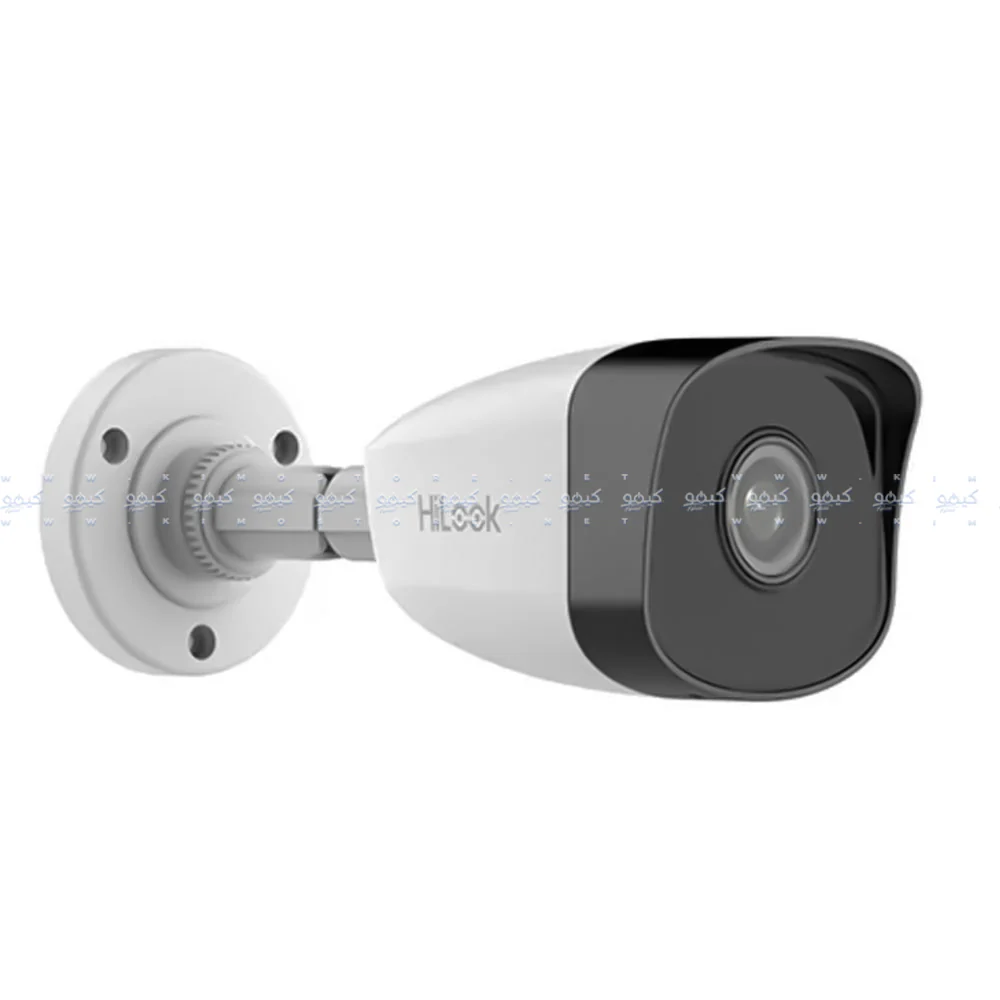

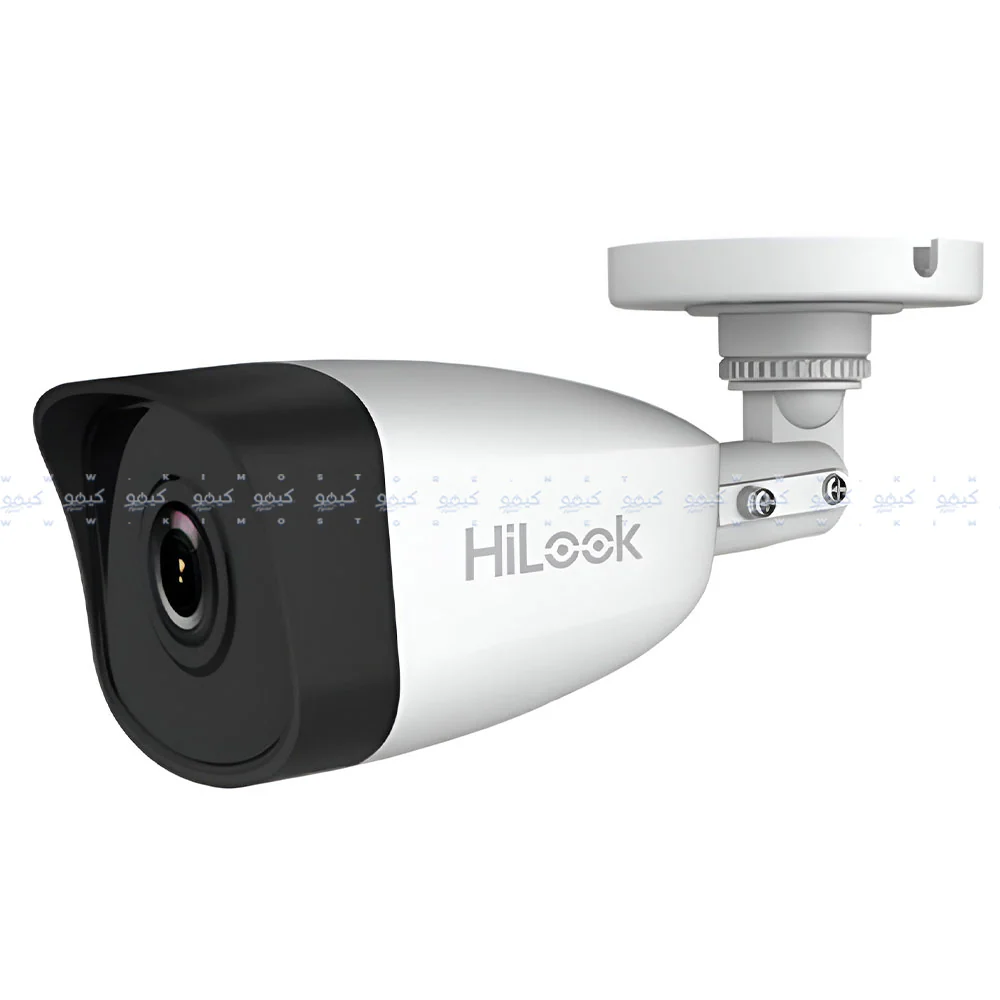

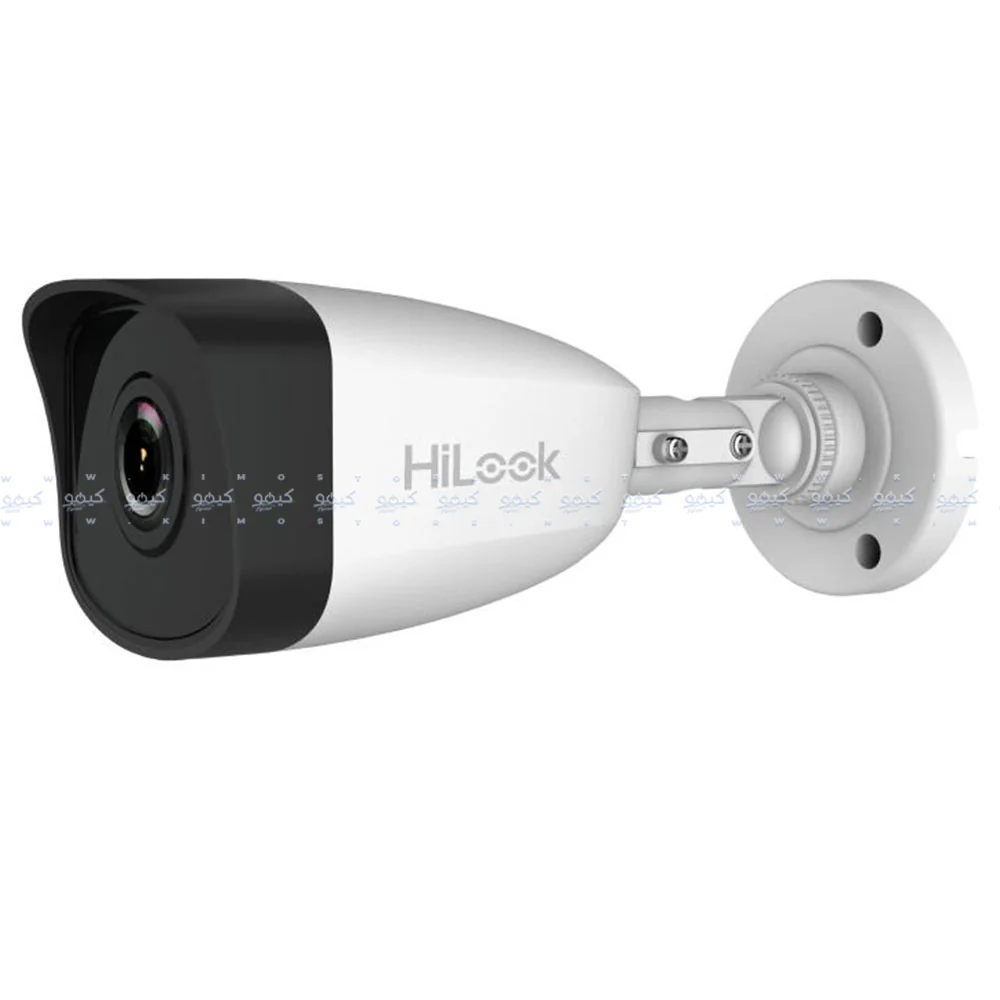

Hilook IPC-B140H Outdoor Security Camera 4MP 4mm—
$35.74
The Story
- Brand: Hilook
- Model: IPC-B140H
- Type: Surveillance Camera
-
Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Resolution: 2560 × 1440, 4MP
- Illumination: Min. Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100, 000 s
- Day/Night: IR Cut Filter
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° To 360°
- Lens: 4mm, Fixed Focal Lens
-
Field of View: Horizontal FOV 78.7°, Vertical FOV 43.1°, Diagonal FOV 92.3°
- Lens Mount: M12
- Light Type: IR
- Light Range: Up to 30m
- IR Wavelength: 850 nm
- Day/Night Switch: Day, Night, Auto, Schedule
- Support Digital WDR: Yes 120dB
- Image Enhancement: BLC, 3D DNR
-
Video & Audio
- Main Stream: 50 Hz: 20 fps (2560 × 1440), 60 Hz: 25 fps (1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360), 60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression: Main Stream: : H.265/H.264/H.265+/H.264+, Sub-Stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 8 Mbps
-
Interface
- Ethernet Interface: 1x RJ45 10 M/100 M Self-Adaptive Ethernet Port
-
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS -
Simultaneous Live View: Up to 6 Channels
-
API: Yes
- User/Host: Up To 32 Users, 3 User Levels: Administrator, Operator and User
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
-
General
- Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (Non-Condensing)
- Power Supply: 12 VDC ± 25% 0.4 A
- Power Consumption: Max. 5W, PoE: 802.3af, Class 3, Max. 6.5W
- Dimensions: 181.6 × 71.4 × 66.7 mm
- Warranty: 1 Year With Warranty Of The Authorized Agent
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- Brand: Hilook
- Model: IPC-B140H
- Type: Surveillance Camera
-
Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Resolution: 2560 × 1440, 4MP
- Illumination: Min. Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100, 000 s
- Day/Night: IR Cut Filter
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° To 360°
- Lens: 4mm, Fixed Focal Lens
-
Field of View: Horizontal FOV 78.7°, Vertical FOV 43.1°, Diagonal FOV 92.3°
- Lens Mount: M12
- Light Type: IR
- Light Range: Up to 30m
- IR Wavelength: 850 nm
- Day/Night Switch: Day, Night, Auto, Schedule
- Support Digital WDR: Yes 120dB
- Image Enhancement: BLC, 3D DNR
-
Video & Audio
- Main Stream: 50 Hz: 20 fps (2560 × 1440), 60 Hz: 25 fps (1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360), 60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression: Main Stream: : H.265/H.264/H.265+/H.264+, Sub-Stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 8 Mbps
-
Interface
- Ethernet Interface: 1x RJ45 10 M/100 M Self-Adaptive Ethernet Port
-
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS -
Simultaneous Live View: Up to 6 Channels
-
API: Yes
- User/Host: Up To 32 Users, 3 User Levels: Administrator, Operator and User
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
-
General
- Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (Non-Condensing)
- Power Supply: 12 VDC ± 25% 0.4 A
- Power Consumption: Max. 5W, PoE: 802.3af, Class 3, Max. 6.5W
- Dimensions: 181.6 × 71.4 × 66.7 mm
- Warranty: 1 Year With Warranty Of The Authorized Agent
